1．产品简介：

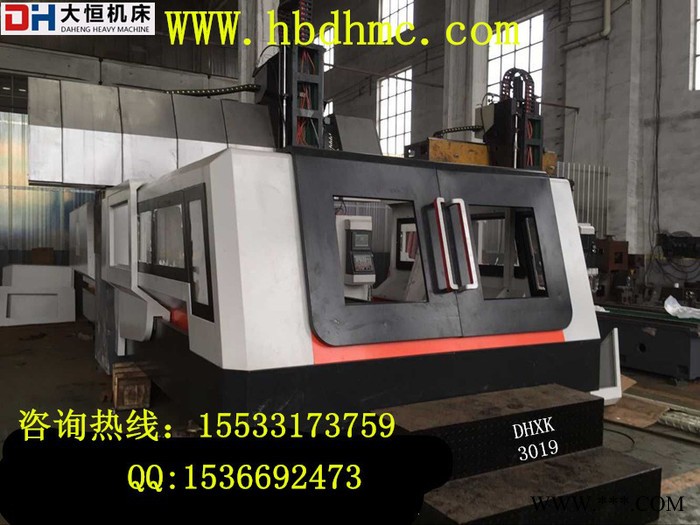

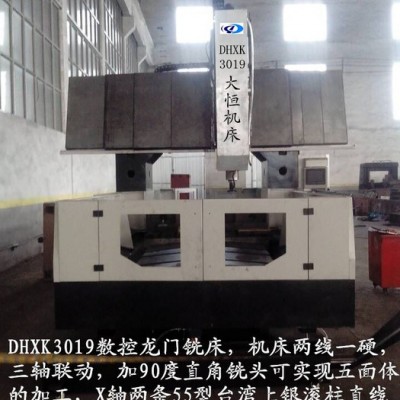

机床的结构特点：固定式床身、工作台移动；主轴箱随溜板上下移动；亦可沿横梁左右移动实现三轴联动；配置22kW主镗铣头。机床具有铣削、镗削、钻削、锪孔等功能，适用于机械、钢铁、能源、汽车、航空航天、兵器、船舶等行业的大、中型零件的加工。配备附件铣头后可实现工件的一次装夹，安装直角铣头可五面加工，一机多用，提高了工件的加工质量和生产效率。该机床台湾新代系统CNC数控控制。

为保证机床性能与可靠性， 我公司在该机床上大量采用高品质的配套件：

轴承采用NSK精密高品质轴承

电机采用华大电机

丝杆采用台湾上银滚珠研磨丝杠

导轨采用台湾上银滚珠直线导轨。

一、       机床主要技术参数：

1．机床主参数：

工作台尺寸（宽×长）······································ 3000mm′1600 mm

上下行程······························································ 1000mm

T型槽宽······························································· 7*22mm

T型槽间距··························································· 200mm

2．加工范围参数：

工作台行程·························································· 3000mm

两立柱间距·························································· 1900mm

主轴箱上下进给·················································· 800mm

加工最大高度······················································ 1000mm

3．主铣头参数：

主轴电机功率（S1/S6-60%）···························· 18.5kW

主轴转速范围······················································ 4500r/min

主轴输出转矩（S1/S6-60%）···························· 300 Nm

主轴锥孔······························································ ISONo.50 （BT50)

4．整机参数：

机床电气总容量·················································· 60KVA

机床重量······························································ 约28000 Kg

机床外形尺寸（长×宽×高）·························· 约8000mm×3800mm×3500mm
