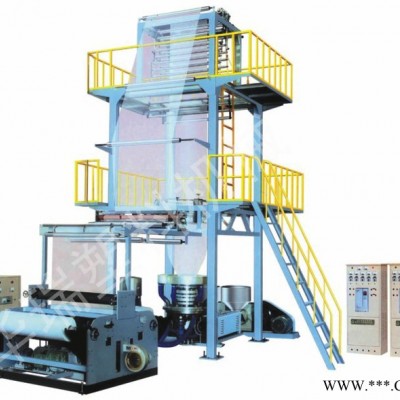

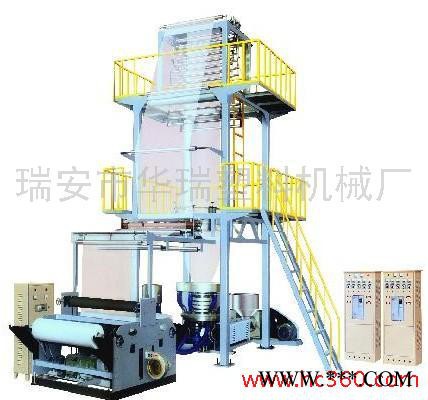

华瑞塑料机械专业生产销售SJ2-55、60 两层共挤吹膜机双层共挤 吹膜机 快递袋吹膜机 吹膜机厂家 吹膜机批发
产品: 浏览次数:1219华瑞塑料机械专业生产销售SJ2-55、60 两层共挤吹膜机双层共挤 吹膜机 快递袋吹膜机 吹膜机厂家 吹膜机批发
品牌: 华瑞塑机
吹膜厚度(mm): 0.02-0.10
**大吹膜宽度(mm): 1500
单价: 215000.00元/台
最小起订量: 1 台
供货总量: 100 台
发货期限: 自买家付款之日起 天内发货
有效期至: 长期有效
最后更新: 2021-07-05 17:00

详细信息
吹膜厚度(mm) 0.02-0.10
最大吹膜宽度(mm) 1500
螺杆直径 35mm
生产能力 60kg/h
适用原料 LDPE、HDPE、LLDPE
售后服务 整机保修一年
种类 40、50、55
品牌 华瑞
型号 SJ2-55、60

        用于吹制低密度聚乙烯(LDPE)、高密度聚乙烯(HDPE)和线性低密度聚乙烯(LLDPE)等塑料复合膜。广泛应用于液体包装、印刷基材、出口产品包装、工业包装等。         主要技术参数Main Technical Variables:



                                                                                                             型号Model                                                                                                                                                                   SJ-45*2/FM
                                                                                                             螺杆直径Screw Diameter                                                                                                                                                                   2*45mm
                                                                                                             螺杆长径比Screw Ratio                                                                                                                                                                   L/D28:1
                                                                                                             螺杆转速Screw speed                                                                                                                                                                   12-120r/min
                                                                                                             最大产量Main Output                                                                                                                                                                   35kg/h
                                                                                                             主机功率Power of Main Motor                                                                                                                                                                   2*11kw
                                                                                                             模头规格 Specification of Die Head                                                                                                                                                                   140-200mm
                                                                                                             机头旋转方式Rotational Mode of Machine Head                                                                                                                                                                   连续旋转
                                                                                                             薄膜单面厚度Single-side Thickness of Film                                                                                                                                                                   0.02-0.10mm
                                                                                                             薄膜最大折径Max. Folding Width of Film                                                                                                                                                                   800mm
                                                                                                             电器总容量Total Power                                                                                                                                                                   42kw
                                                                                                             机器重量Weight of Machine                                                                                                                                                                   3500kg
                                                                                                             外形尺寸Overall Dimension(L*W*H)                                                                                                                                                                   4200*2200*4200mm
