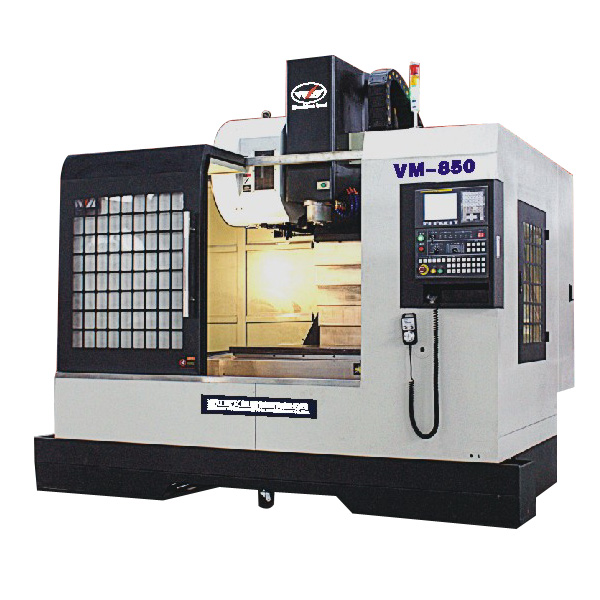

型号Model | VM850L | VM850R |
X轴 X Axis | 800mm | 800mm |
Y轴 Y Axis | 500mm | 500mm |
Z轴Z Axis | 500mm | 600mm |
主轴中心至立柱导轨距离Distance between Spindle center and column guide way | 599mm | 580mm |
主轴端面至工作台面距离Distance between Spindle and face and work table surface | 160-660mm | 105-705mm |
X轴快速移动X Axis Quick Travel | 48m/min | 30m/min |
Y轴快速移动Y Axis Quick Travel | 48m/min | 30m/min |
Z轴快速移动Z Axis Quick Travel | 48m/min | 30m/min |
切削进给Feeding | 1-10000mm/min | 1-10000mm/min |
工作台面积 work Table | 550X1000mm | 500X1000mm |
最大承重 Max.Loading Weight | 700kg | 800kg |
T型槽 T-slot | 5-18X100mm | 5-18X100mm |
主轴转速 Spindle Speeds | 8000rpm | 8000rpm |
主轴锥孔（7:24）Taper of spindle Bore | BT40 | BT40 |
拉刀力 Broach force | 8KN | 8KN |
刀柄型号 Tool Holder Type | MAS403 BT40 | MAS403 BT40 |
拉钉型号 Blind Rivet Type | MAS BT34-I | MAS BT40-I |
主电机功率Power of Main Motor | 7.5/11KW | 7.5/11KW |
类型 Type | 圆盘式Vertical | 圆盘式Vertical |
刀位 Tool Number | 24T | 24T |
刀具最大直径/长度/重量 Max.Diameter/length/weight of tool | 80mm/300mm/7Kg | 80mm/300mm/7Kg |
刀具最大直径（相邻无刀具）Max.Diamete of Too（Without Adjacent Cutting Tools） | 130mm | 130mm |
换刀时间 Time of Changing Tools | 1.8秒s | 1.8秒s |
数控系统CNC Syatem | FANUC Oi mate MD | FANUC Oi mate MD |
定位精度
Position Accuracy | X轴X Axis | ±0.006/300mm | ±0.010/300mm |
Y轴Y Axis | ±0.006/300mm | ±0.010/300mm |
Z轴Z Axis | ±0.006/300mm | ±0.010/300mm |
重复定位精度
Repeat Position Accuracy | X轴X Axis | ±0.004mm | ±0.005mm |
Y轴Y Axis | ±0.004mm | ±0.005mm |
Z轴Z Axis | ±0.004mm | ±0.005mm |
机床外形尺寸（长X宽X高）mm Outlook Size （LXWXH）mm | 2600X2300X2860 | 2600X2300X2860 |
重量 Weight | 7000Kg | 6800Kg |
