武义机床CK6140系列数控车床车床

产品项目Product Item

A系列数控车床适用于各种钢铁、有色金属的轴类、盘类及复杂零件的加工
A series CNC lathe is suitable for all kinds of steel,shafts of nonferrous metal,disks and complex work-pieces.

CK6140

CK6145

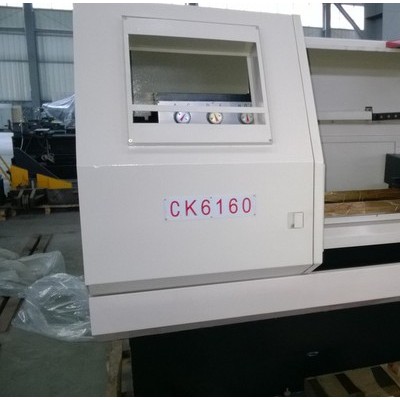

CK6160

床身导轨宽度（mm）
Width of bed guide

330

400

460

床身上最大回转直径（mm）
Max.swing over bed

Φ400

Φ460/500

Φ600

拖板上最大回转直径（mm）
Max.Swing over cross slide

Φ200

Φ200

Φ300

两顶针间距离（mm）
Diatance between centers

750

1000/750

500

主轴通孔直径（mm）
Diamter of spindle bore

Φ52

Φ80

Φ80

主轴转速r/min
Spindle speeds

19-1800

35-1600

35-1200

主电机功率(kw)
Main motor power

4.5/5.5

4/5.5

7.5

Z轴
Z-Axis

快速移动速度(n/min)
Rapid movement speed

5-8

5-8

5-8

最小设定单位（mm）
Min.setting unit

0.001

0.001

0.001

X -轴
X-Axis

快速移动单位(n/min)
Rapid movement speed

3-5

3-5

3-5

最小设定单位（mm）
Min.setting unit

0.001

0.001

0.001

尾架
Tailstock

套筒直径（mm）Diameter of tailstock sleeve

Φ55

Φ70

Φ70

套筒锥孔Taper of tailstock sleeve

MT#4

MT#5

MT#5

最大行程（mm）Max.Travel

120

150

150

刀架工位（把）Number of tool post locations

4/6

4/6

4/6

外形尺寸（长X宽X高）Outlook Size(LXWXH)

2260X1250X1770

2550X1410X1870
2410X1460X2120

2050X1500X2140

重量毛/净（吨）G.W./N.W.(T)

1.7/1.5

2.5/2.3

2.2/2

横、纵向导轨超音频淬火，耐磨性好Longitudinal and cross guide ways are treated by audio quenching,and has good abrasion resistance.

是Yes

是Yes

是Yes

主传动齿轮全部磨削，噪音低Main transmission gears all grinded with low noise

是Yes

是Yes

是Yes

1

电动卡盘

是Yes

是Yes

是Yes

2

液压动力卡盘及液压尾架Electric chuck

是Yes

是Yes

是Yes

控制系统
CNC System

广数980TA/928TC

是Yes

是Yes

是Yes

北京KND100T/KNDITB II

是Yes

是Yes

是Yes

仁和CNC90T/CNC32TF

是Yes

是Yes

是Yes
