外形尺寸 | (2840-12100)x1257x1347(mm) |
---|---|
加工精度 | 精密 |
适用行业 | 通用 |
是否库存 | 否 |
产品类型 | 全新 |
安装形式 | 落地式 |
布局形式 | 卧式 |
主电机功率 | 11kw |
最大回转直径 | 650-1000mm |
最大加工长度 | 750-10000mm |
最大加工直径 | 350-750mm |
主轴通孔直径 | 70mm |
动力类型 | 机械传动 |
适用范围 | 通用型 |
类型 | 普通车床 |
控制形式 | 人工 |
主轴转速级数 | 18 |

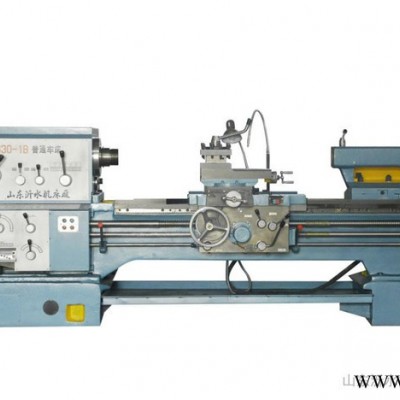

普通车床Common lathe
C630-1B、C630-1BG、CW6163B、CW6180B、CW61100B普通车床能够承担各种车削工作。如车削内外圆柱面、圆锥面及其他回转面和端面等,车削各种常用螺纹:公制螺纹、英制螺纹、模数螺纹和径节螺纹等。在本机床上加工的零件轴类尺寸精度能达到IT6。
C630-1BM,C630-1BMG、CW6263B、CW6280B型马鞍车床,加大了主轴回转直径特别适于加工较大的盘类和畸形零件。Common lathes of C630-1B、C630-1BG、CW6163B、CW6180B、CW61100B can undertake various turning works such as turning inner and outer cylindrical surface, conical surface and other revolution and end surface etc., and tuning all kinds of common threads: metric thread, inch thread, modulus thread, and diameter pitch thread etc. The dimensional accuracy of parts and axles processed by the machine tools can reach IT6.
The gap-bed lathes including C630-1BM, C630-1BMG, CW6263B and CW6280B increase the swing diameter of spindle and are suitable for machining discoid and non-circular parts with bigger diameters.
