| 材质 | 硅酸铝 |
|---|---|
| 产地 | 山东 |
| 产品类别 | 硅酸铝制品 |
| 拉伸强度 | 5 |
| 形状 | 层状 |
| 执行质量标准 | 国标 |
| 芯材 | 硅酸铝 |
| 耐火温度 | 1000～1200℃ |
| 品牌 | 火龙硅纤 |
| 型号 | HLGX-164 |
| 准入认证 | IOS9001 |
隔热模具用板_普通陶瓷纤维板

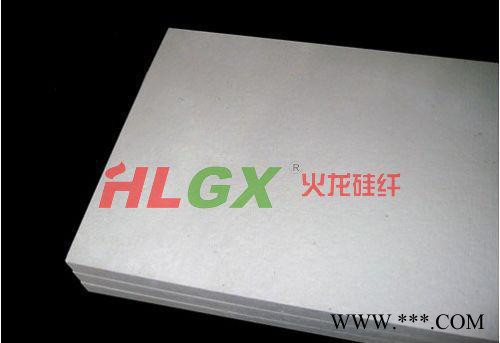

火龙陶瓷纤维板Huolong Ceramic Fiber Board
产品描述：Description
◎火龙1050/1260陶瓷纤维板是采用连续化生产、工艺技术水平先进的流水化生产线制成。
◎火龙1050/1260陶瓷纤维板具有表面平整、尺寸精确、韧性好、可任意切割、保温效果优良等性能特点。
◎火龙1050/1260陶瓷纤维板根据温度区分，可广泛应用于工业窑炉背衬及低温窑炉的热面，是窑炉节能降耗、优质高产的重要保证因素之一。
Huolong 1050/1260 Ceramic Fiber Board was processed by the advanced production line, which was adopted the continuous- processing method.
Huolong 1050/1260 Ceramic Fiber Board have many typical characteristics, such as exact measurement，excellent toughness，excellent heat preservation and can be cut discretional.
Huolong 1050/1260 Ceramic Fiber Board is divided in different series by the temperature, can be wide used as the back lining of industrial furnace and the hot surface of the low temperature furnace. It is one of the guarantees of reaching the energy conservation and the high quality.
产品种类：Product Series
◎火龙1050陶瓷纤维板HLGX-164B
◎火龙1260陶瓷纤维板HLGX-264B
Huolong1050Ceramic Fiber Board HLGX-164B
Huolong1260Ceramic Fiber Board HLGX-264B
产品特性：Characteristic
◎低热容量、低热导率
◎耐压强度高
◎非脆性材质，韧性好
◎尺寸精确，平整度好
◎均质的结构，易于机械加工
◎易于安装
◎连续化生产，纤维分布均匀，性能稳定
◎优良的热稳定性及抗热震性
Low Heat Storage，low thermal conductivity
Excellent compressive strength
Not fragile materials, excellent flexibility
Exact measurement，excellent flatness
Homogeneous structure, excellent machine-processed capability
Easy fixing specialty
Processed continuous，the fibers interweave shape and excellent stability
Excellent chemical stability and thermal shock resistance
典型应用：Application
◎水泥建材行业窑炉的背衬保温绝热
◎陶瓷行业各种窑炉的背衬保温
◎石化、冶金行业窑炉的背衬、壁衬、衬里保温
◎玻璃窑炉的壁衬、背衬保温
◎热处理窑炉的背衬保温绝热
◎铝厂电解还原槽耐火砖背衬
◎高温反应、加热设备的壁衬、背衬材料
Heat preservation and insulation materials as the back lines for the kilns in the field of cement building
Heat preservation materials as the back lines for the kilns in the field of ceramic
Heat preservation materials as the wall lines and back lines for the kilns in the field of metallurgy and petrochemical industry
Heat preservation materials as the wall lines and back lines for the Glass furnace.
Refractory and insulating materials for heat treatment equipment
The back lines of refractory brick for electrotic reducing bath in aluminum factory
Materials of the wall lines and back lines of heat and pyroreaction equipment
技术指标Technical Index：
产品名称 Name | Huolong1050Ceramic Fiber Board | Huolong1260Ceramic Fiber Board | |
产品代码 Code | HLGX-164B | HLGX-264B | |
加热永久线变化(％) Shrinkage on Heating (％) | 950×24h≤-2.5 | 1000×24h≤-2 | |
理论导热系数Theoretical Thermal Conductivity W/(m·k) | 热面温度800℃ (Hot Surface 800℃) | ≤0.116 | — |
热面温度1000℃ (Hot Surface1000℃) | — | ≤0.135 | |
抗压强度（Mpa） Compressive Strength,（Mpa） | ≥0.1 | ≥0.25 | |
理论密度Theoretical Density (kg/m3) | 220 | 300 | |
含水率Moisture Content（％） | ≤1 | ||
有机物含量Organic Content（％） | ≤8 | ||
产品规格Specification (mm) | 900×600×10-100mm | ||
包装Package | 单件：纸箱外塑封Single One：Carton Box ,Plastic Package Outside ； 大件：木托Stack：Wooden Pallet | ||
