| 品牌 | 精呈 |
|---|---|
| 型号 | V500G |
公司願景:以高品質高精度的工作機械貢獻世界
經營理念:
「信賴」是技術的信賴、品質的信賴、服務之信賴、然後員工幸福、顧客滿意才是信賴的見證。
「創造」沒有創造力也**沒有公司的發展,領先社會的需求、常著眼於未來的商品開發、努力創造顧客滿意的技術服務。
Company vision: making contributions to the world with high-quality and high-precision machinery.
Business philosophy:
「Dependability」puts into trial the trust of technology, of quality, and of service, and then witnesses the employees&＃39; happiness and customers&＃39; satisfaction.
「Creativity」 seeds the company&＃39;s future for taking the lead to the demands of the society, mainly focusing on development of products for the future and striving to forge technical services of customer satisfaction.

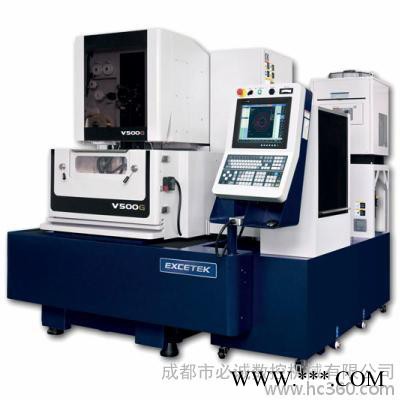

全新的VG Series CNC線切割機,系列機型規格齊全,V350G,V500G,V650G,V850G 是**適合高精度模具與特殊零件加工系列機型，滿足多樣的需求是您的**夥伴。
具備: 簡約亮麗外觀容易操作的設計,並擁有優良的加工精度與表面光潔度。
The novel VG Series CNC wire cutting machine comes with a full series of models, among which V350G,V500G,V650G,V850G are most suitable for processing high-precision molds and special-purpose parts, as your best working partner helping you meet versatile demands.
Features: a concise and beautiful appearance, a user friendly operation interface, an excellent processing accuracy, and a best surface finish.
VG系列線切割機特色
高剛性的機械結構-透過電腦輔助設計及FEM分析,設計優良的機械結構提供準確的基石。
EF-Electrolysis Free generator 高頻無電解細修電源可達Ra0.4以下的光潔度,
SFC-Super Finish Circuit 可選用超鏡面電源,更可達到Ra0.2以下的表面光潔度
DPM-Digital Power Manager 全數位放電控制技術,在轉角精密度,段差的工件加工有良好的速度與精度。
AWT-High Speed AWT 高速自動穿線系統,使用銅線退火拉直機能,在斷線點可自動穿線,或高落差時使用高壓細水柱穿線
Wire Consumption 線徑消耗補償機能自動補償銅線消耗降低銅線消費量,尤其是在高工件加工時相較上一代機型**大可節省35%的銅線用量
Features of the VG Series Wire Cutting Machine
1. A high rigidity mechanical structure coupled with computer-aided design and FEM analysis provides the foundation of precision for the design of superior mechanical structures.
2.The EF-Electrolysis Free high frequency generator provides electroless fine repair power capable of reaching a surface finish less than Ra0.4.
3. The SFC-Super Finish Circuit: with the optional super finish power can reach a surface finish less than Ra0.2.
4. DPM-Digital Power Manager: the fully digitized discharge control technology, provides perfect speed and accuracy for processing that requires angular precision or has segment deviation or works on parts .
5. AWT-High Speed AWT: a high-speed automatic wire threading system, uses the wire annealing straightening mechanism to do automatic wire threading at a breaking point, or takes high-pressure water jet threading at a high drop situation.
6. The Wire Consumption mechanism can automatically compensate the copper wire consumption and reduce the consumption volume, especially compared to the previous generation models when it comes to high workpiece processing, saving about 35% of the copper wire consumption.
機台特性
高剛性鑄件設計，配合**的支柱設計(RIB)來承載立柱，降低鑄件應力所造成的變形，以達到高精密加工。
加大機台基座跨距設計，提高機械穩定度。
設計堅固的U/V軸鑄件，提供穩定的切割精度
不鏽鋼工作檯面，硬度達到HRC50度
採用C1等級滾珠導螺桿及超精密級線性滑軌，及採用高應達之AC伺服馬達傳動系統，光學尺安裝於靠近滾珠螺桿位置全閉環路控制,以達到0.1u㎜的移動精度。”
全系列機台皆經雷射校正儀及Ball Bar循圓量測儀,實施機械移動精度校正。
Machine Characteristics
1. The design of high-rigidity casting hosts the best pillar design (RIB) to bear the column and reduce deformation caused by the casting stress, so as to reach high-precision machining.
2. The enlarged machine base improves the mechanical stability.
3. The sturdy U / V axes casting provides a stable cutting precision.
4. The stainless steel workbench has a hardness of HRC50 degree.
5. The C1-class ball screws and super precision linear gliding rails, along with a high AC servo motor drive system and the optical scale mounted in a closed loop control adjacent to the ball screw position, enable a 0.1u㎜ movement accuracy.
6. The whole series of machines go through mechanical movement precision calibration with the laser measurement system instrument and Ball Bar circular measurement instrument.
加工電源系統
EF-Electrolysis Free generator 無電解細修電源,全時使用AC無電解放電加工,加工鈦合金或超硬鎢鋼材料表面不會發生電解,標準電源光潔度可達Ra0.4以下,並且因工件加工後軟化成較小,使模具有很良好的壽命
SFC-Super Finish Circuit 可選用超鏡面電源,採用非常高頻率的加工電流，使加工五刀時便可達到Ra0.2以下的表面光潔度，並且有良好的成形精度。
The Power System for Processing:
The electroless fine finish power produced by the EF-Electrolysis Free generator allows full-time using AC electroless discharge processing on titanium alloys or super-hard tungsten steel without electrolysis on the material surface, and can reach a standard power finish less than Ra0.4; and the workpiece becomes smaller of softened layer after being processed, the mold can have an excellent service life.
The SFC-Super Finish Circuit can use the optional super mirror power for very high frequency machining current so that when it comes to the processing of five knife fittings, the surface finish can be less than Ra0.2, and with very good forming precision.
智慧型放電模組
DPM- DPM-Digital Power Manager
以高速晶片檢知放電密度之數位訊號作回授,CNC控制器計算出放電面機,因此可更精準地控制放電之能量,線張力,水流,提升工件有段差時加工速度與精度
Intelligent Discharge Module
DPM- DPM-Digital Power Manager
It uses high-speed chip to detect and feedback the digital signal of discharge density, for more precise control over the discharge, wire tension, and water flow, so that the speed and accuracy of processing workpiece with segment deviation can be greatly enhanced.
自動穿線系統
AWT-Reliable Auto Wire Threading System
提供日夜不間斷的無人操作系統。
可靠的自動穿線系統可從斷線點直接穿線，失誤率非常低，提高加工效率。
水柱噴水穿線功能，使機械穿線能力達工件厚度500㎜。(使用時機：切割較高工件時使用)
